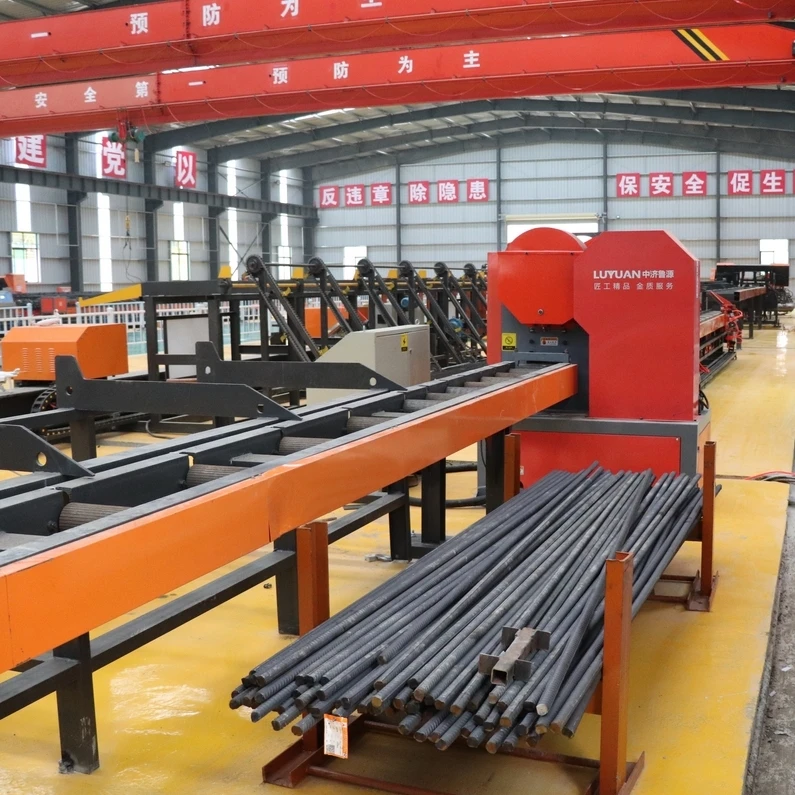

The equipment is an auxiliary production equipment for bar reinforcement to realize the batch size cutting of bars, easily meet the matching of subsequent bending circle, bending arc, bending hoop and other procedures that require the size of bars, widely used in construction, highway, high-speed rail, tunnel, water conservancy, nuclear power plant and other industries.
Video
Parameters
|
Bar diameter (mm) |
10 |
12 |
16 |
20 |
22 |
25 |
28 |
32 |
35 |
38 |
|
Shear bar quantity(HRB400) |
10 |
8 |
6 |
4 |
3 |
3 |
2 |
1 |
1 |
1 |
|
Shear frequency |
20 times/min |
|||||||||
|
Effective blade width |
200mm |
|||||||||
|
Bar transfer speed |
50m/min |
|||||||||
|
Shearable bar length |
750~12000mm |
|||||||||
|
Size error |
±5mm |
|||||||||
|
Minimum manual shear size |
750mm |
|||||||||
|
Minimum automatic shear size |
1200mm |
|||||||||
|
Bar diameter |
Φ10~38mm |
|||||||||
|
Shear line total power |
14KW Including air compressor |
|||||||||
|
Bar receiving bin |
3*2 |
|||||||||
|
Average power consumption |
8KW/H |
|||||||||
|
Total air consumption |
1m³/min |
|||||||||
|
Equipment floor space |
26m×3.2m×1.5m |
|||||||||
Emergency Handling Procedure Of Accident
1. In case of an accident, the operator should stop the operation immediately to ensure his own safety.
2. In the accident place, warning signs or obstacles should be set up to prevent other personnel from straying into dangerous areas.
3. After the accident, it should be reported to the superior in a timely manner and seek professional assistance and support.
Safety operating rules for hydraulic shear production line of CNC bar and reinforcement
1. The operator must wear a safety helmet and protective gloves, otherwise not allowed to enter the site.
2. Confirm that there are no other non-operators around the machine, in case of accidents.
3. In order to make the machine have good working conditions, grease should be added to each lubrication point before starting.
4. Check whether the hydraulic oil in the tank is sufficient, the liquid level should be in the middle of the oil target, the liquid level is too low should be timely replenishment of oil.
