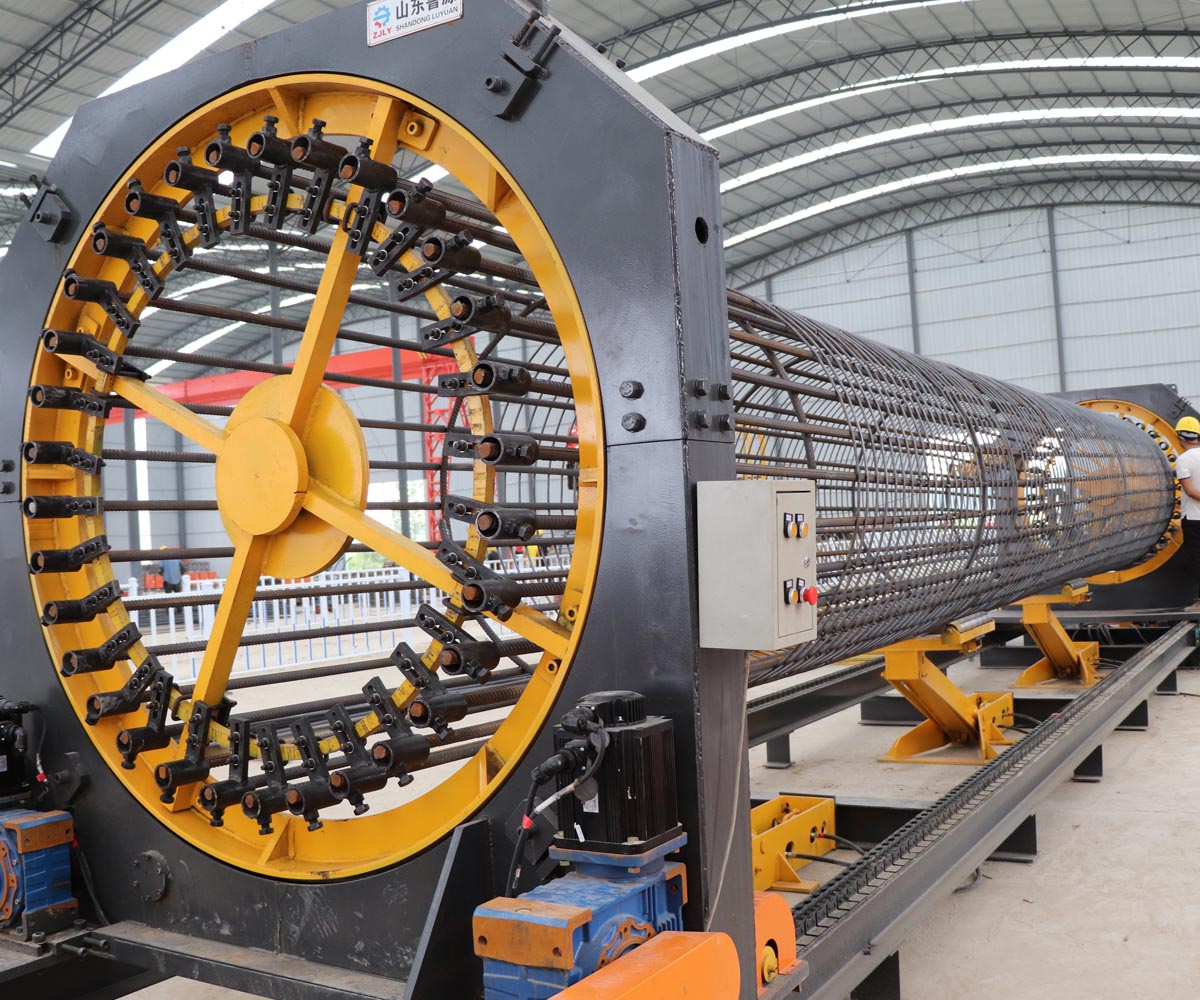

Reinforcing Cage Welding Machine

Instead of manual processing，it simplifies complex and difficult manual processing processes. In steel cage making, on a human-assisted basis, the automatic production equipment can complete main reinforcement feeding, stirrup straightening and winding, stirrup and main reinforcement welding and other processes. It greatly improves the processing efficiency and product quality. Compared with the old product, several important structures are optimized to make it more reasonable and the cost is greatly reduced, and the equipment is more competitive in the market. The plate part of the flexible die ring and cross bar installation design, can be flexibly replaced according to different pile specifications, economical and applicable.

Instead of manual processing,it simplifies complex and difficult manual processing processes. In steel cage making, on a human-assisted basis, the automatic production equipment can complete main reinforcement feeding, stirrup straightening and winding, stirrup and main reinforcement welding and other processes. It greatly improves the processing efficiency and product quality. Compared with the old product, several important structures are optimized to make it more reasonable and the cost is greatly reduced, and the equipment is more competitive in the market. The plate part of the flexible die ring and cross bar installation design, can be flexibly replaced according to different pile specifications, economical and applicable.

Operation steps for this machine
1)The steel bar according to the design requirements to cut and bend, ready the required length and shape of the steel bar.
2)According to the design requirements of the steel cage, adjust the parameters of the steel cage forming machine, including steel diameter, cage diameter, cage length, etc.
3)Put the steel bar into the feed port of the steel cage forming machine one by one, and bend and fix the steel bar through the mechanical transmission device.
4)The operator should always pay attention to the operation of the machine, to ensure the smooth operation of the steel cage forming machine, no abnormal sound or vibration.
5)In the process of steel cage molding, timely clean up the accumulation of material and debris on the machine to keep the machine clean.
6)After the completion of the steel cage molding, stop the machine operation, take out the formed steel cage, and check.
7)For the defective or unqualified steel cage, it should be repaired or remade in time.
