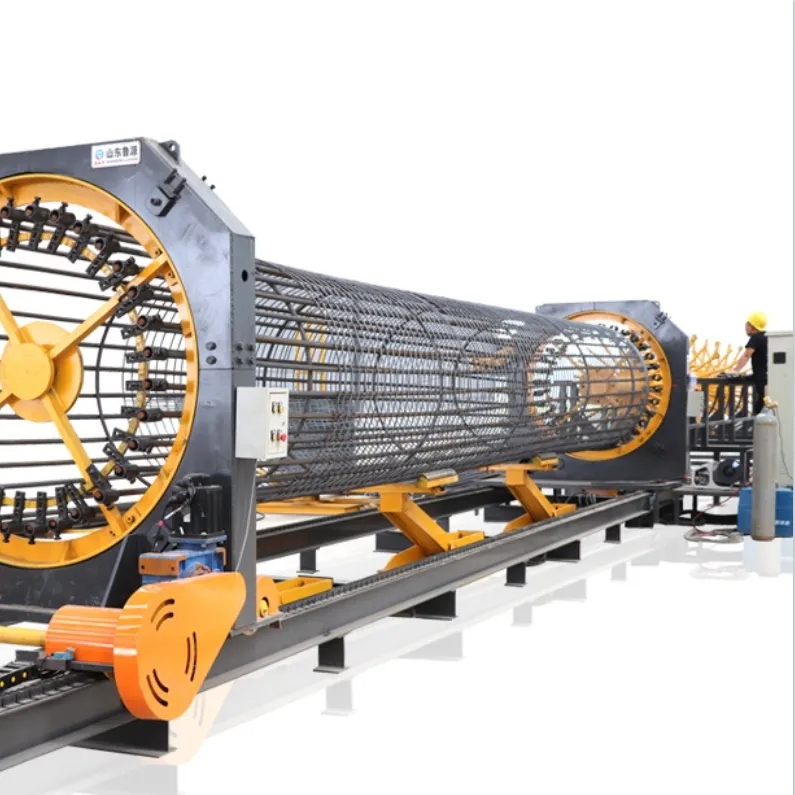

Steel Bar Cage Welding Machine

Steel cage welding machine is an automatic equipment for making steel cage. The device requires 2-3 people to operate. Fast and efficient production of steel cage. The spacing and dimension standard of steel cage winding. It is a kind of modern steel bar processing equipment which is widely welcomed by road and bridge, high-speed and high-speed railway. Many construction parties do not distinguish the type of steel cage welding machine they need when purchasing steel cage welding machines.

LYGH-1500~3000,Steel Bar Cage Welding Machine
The steel cage production equipment controlled by PLC ended the history of manual binding of steel cages. It's widely used in highway, high-speed railway, rail transit, power engineering, water conservancy projects and other projects. The equipment is mature, stable and easy to operate. Customers can choose the matching double gun automatic welding manipulator.

Video

Parameters

Model	LYGH-1500	LYGH-1800	LYGH-2000	LYGH-2200	LYGH-2500	LYGH-3000
Steel cage pile diameter	500~1500	500~1800	600~2000	600~2200	800~2500	800~3000
Equipment power	16KW	18KW	23KW	23KW	25KW	38KW
Occupied area(No side automatic welding)	28m×6m	28m×6m	28m×6.5m	28m×7m	28m×9m	28m×11m
Occupied area(Including side automatic welding)	28m×8.5m	28m×8.5m	28m×9m	28m×9.5m	28m×11.5m	28m×13.5m
Cage length	12m Customizable
Diameter of main bar of steel cage	Φ16~50
Diameter of winding bar of steel cage	Φ5~16
Welding method of the winding bar	Welding robot or manual
Distance between two winding bars	≤300mm
Hydraulic pressure	≤16MPa
Gas pressure	≤0.8MPa,Automatic welding gas
Welding power	30KW,Double guns automatic welding
Number of operators	1-2 persons,Double guns automatic welding 2-4 persons,Manual welding
Production efficiency	8 sections/10h,Refer to the actual site environment
