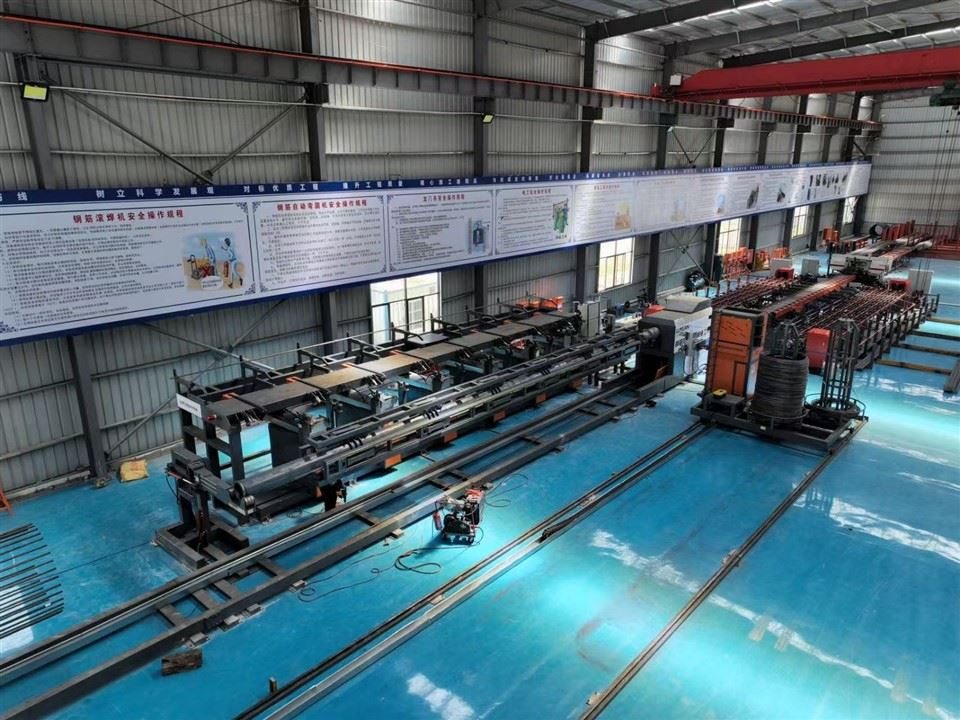

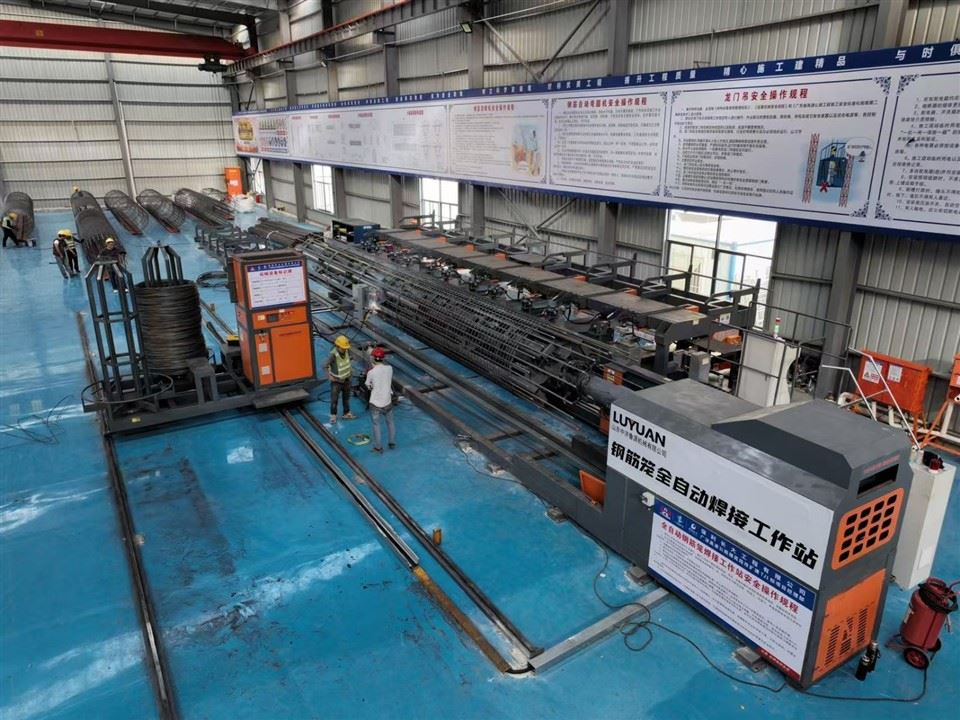

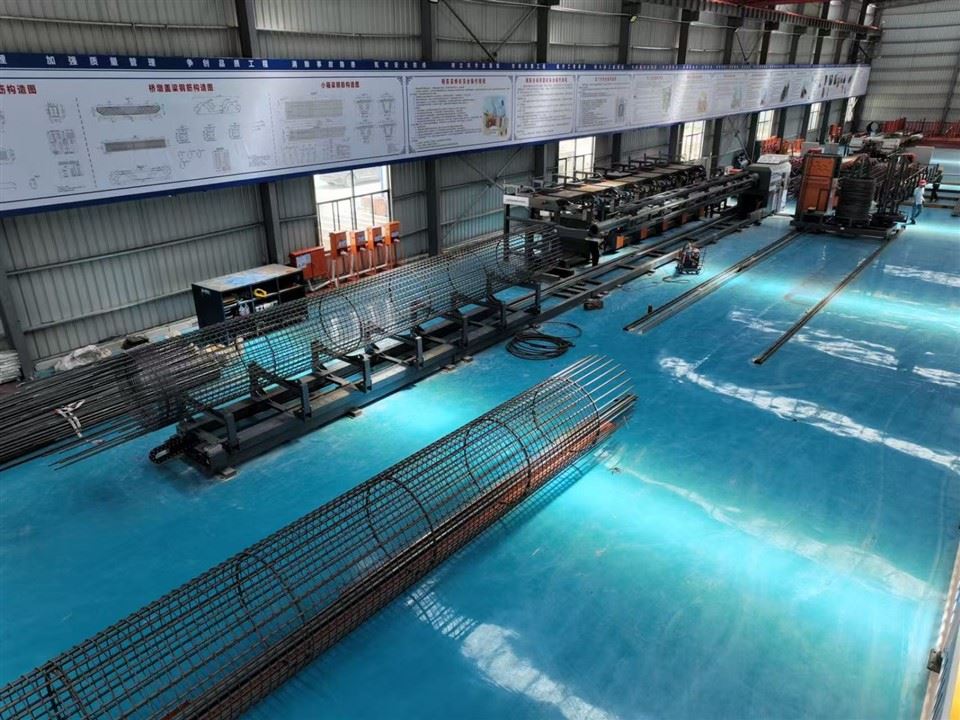

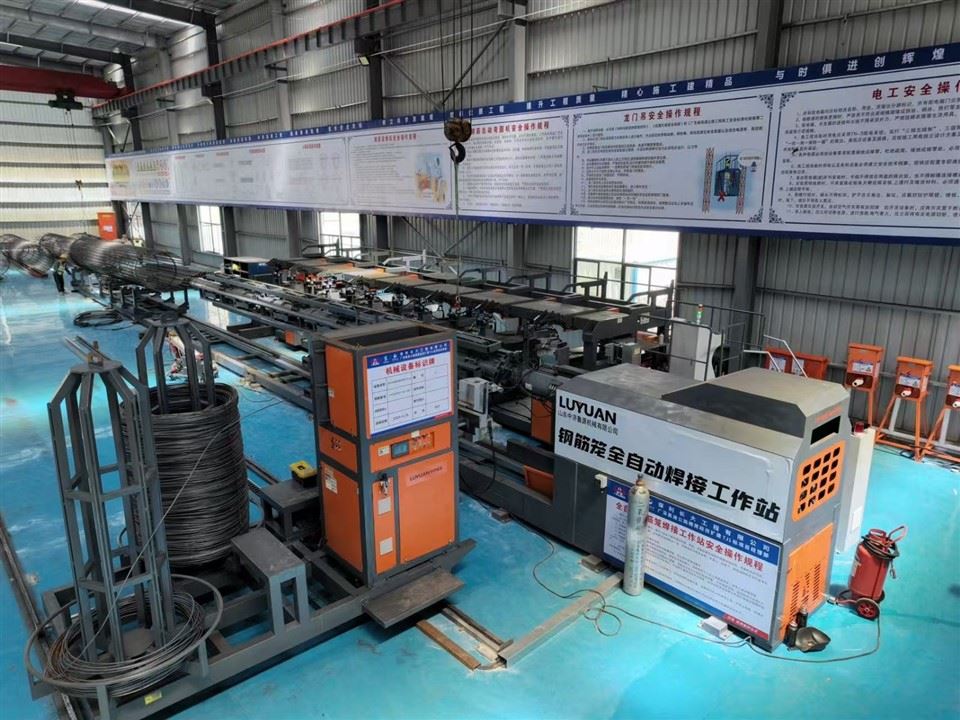

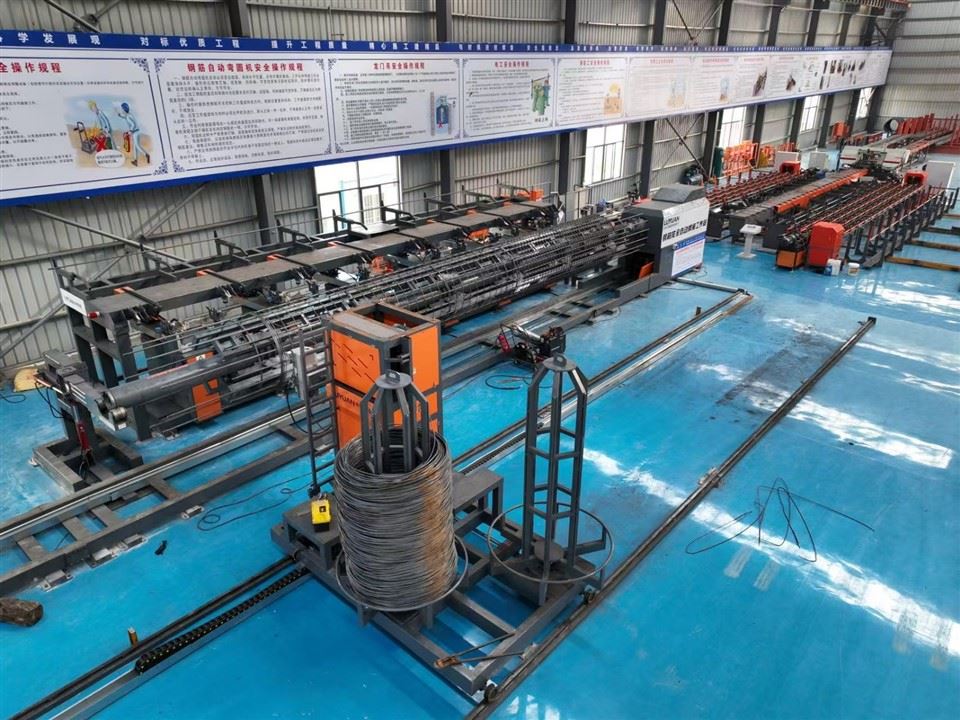

Full-Automatic Steel Cage Welding Workstation

The Full‑Automatic Steel Cage Welding Workstation is an intelligent integrated equipment integrating steel cage framework forming and stirrup welding. It is specially designed for large‑scale and standardized processing of steel cages of various specifications, and is widely used in large‑scale infrastructure projects such as large bridges, high‑speed railways, subway tunnels and water conservancy hubs.

Adopting full‑process automatic control, the equipment integrates automatic main bar feeding, automatic welding of steel cage framework, and automatic winding and welding of stirrups, completely replacing the traditional manual binding and welding mode. It greatly improves the processing efficiency, forming accuracy and welding quality of steel cages, reduces labor input and processing losses, and realizes batch and standardized production of steel cages.

Advantages & Features

1. Full‑Process Automation, Intelligent and Efficient
From main bar feeding, steel cage framework welding, stirrup winding to welding forming, no manual intervention is required throughout the process, realizing full‑process automatic operation. Equipped with an intelligent control system, it can realize parameterized programming and batch processing, real‑time monitoring of the processing process, greatly reducing human errors and improving processing consistency and production efficiency.

2. Precise Forming, High‑Quality Welding
Adopting high‑precision servo positioning and intelligent welding technology, the steel cage size error is ≤±2mm, with regular forming and standard size. The welding system runs stably, with uniform and full welds, no cold welding or missing welding, and the welding strength is far higher than the engineering standard.

3. Wide Adaptability, Flexible Customization
It can be adapted to the processing of steel cages with different diameters and lengths, compatible with various specifications of main bars and stirrups. Users can flexibly adjust parameters such as stirrup spacing, welding speed and steel cage length, supporting personalized customization to meet the diverse processing needs of different infrastructure projects.

4. Easy Operation, Stable and Durable
Equipped with a humanized touch operation interface, supporting processing parameter storage, calling and fault self‑inspection alarm, which is easy for novices to get started. The fuselage is integrally welded with high‑strength steel, impact‑resistant and wear‑resistant. The equipment runs stably with low failure rate, convenient daily maintenance and long service life, adapting to the needs of long‑term large‑scale production.
