Round Rebar Cage Roll Welding Machine-Single Station

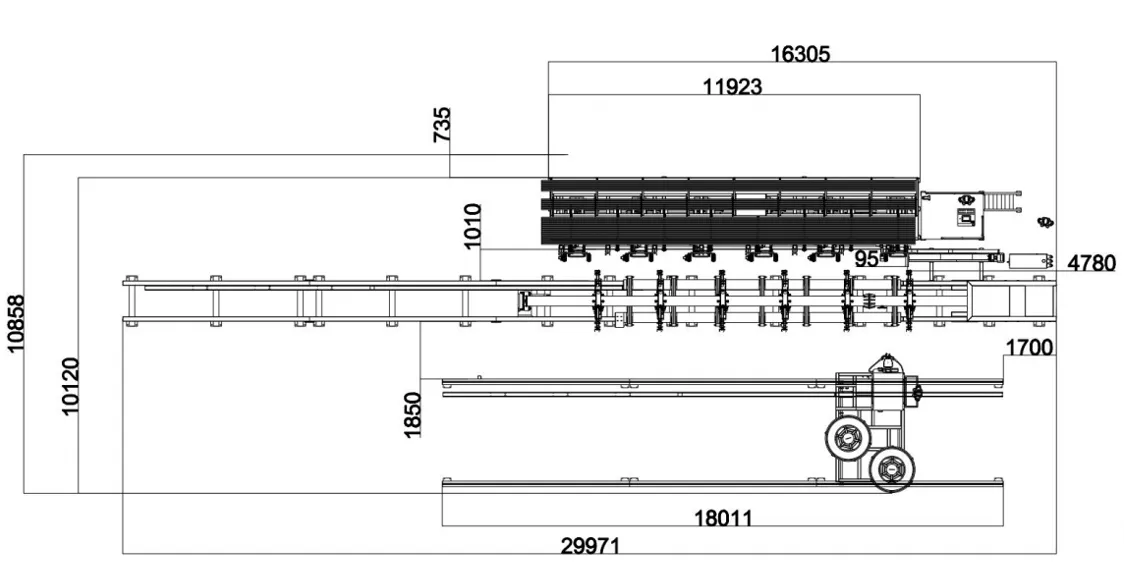

product-1124-566

The equipment consists of automatic feed system of the main bar, main bar detection and positioning welding system, reinforcement welding system, and steel cage cage system. No manual participation is required in the welding process.

The welding efficiency is high, the welding time of completing a main bar is less than 35 seconds, and the welding time of the solder joint can be configured and saved according to the process, saving personnel and greatly improving the welding efficiency. It can ensure continuous and rapid welding, the steel cage skeleton of 9 meters to 12 meters can be welded in 20 minutes, and the reinforcement can be wound and welded in 15-20 minutes. Good welding quality, no virtual welding, reliable quality, precise control of welding time and welding position to save welding materials.

The system supports the presetting of multiple groups of steel cage specifications, and the workers directly invoke the data when processing using the touch screen one-click operation, the assembly-line working mode is simple and intuitive, and the degree of automation is high. Product quality fully meet the standard requirements. In the actual manual production of steel cage engineering supervision almost every day to the processing site for inspection, and the use of steel cage automatic welding workstation, all information equipment can automatically monitor, and welding process real-time detection records, timely report a variety of monitoring information, to ensure the stability and reliability of processing quality.
