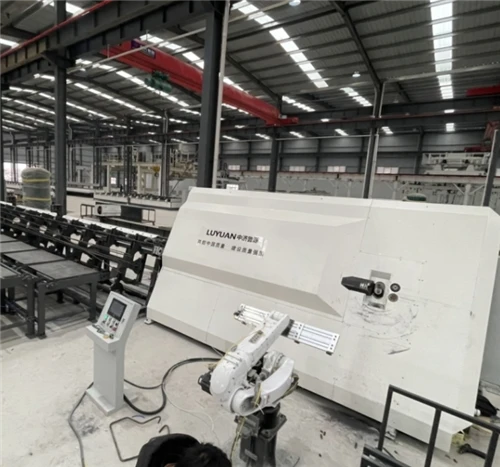

Automatic steel bar bend machine
The raw materials are stored in multistage silos. Different specifications of bars automatic switch matching magnetic feeding mechanism to realize multiple steel bars forming at one time, and the efficiency is stable and efficient.
The integrated structure of the whole machine makes the transshipment convenient, no fixed. All mechanical transmission structure is with low noise and convenient maintenance. Mechanical-electrical integration design has advanced control module. Integrated design of the head moving mechanism is built into the box with compact structure. The working surface is vertical. Feeding and unloading operation is convenient and safe. It is easy to measure the work piece dimensions. The equipment has the test function. No waste is generated when the steel bar is bent. Two-way automatic bending of steel bars can be achieved. The curved steel bar has a maximum diameter of ϕ32.
It is a traditional bar bending equipment with manual assist loading and unloading. It has experienced many years of market verification with stable production, simple operation, high quality and low price.
Parameters
Equipment Model：LYZD-WQ32
|
Bar diameter (Single) |
12-32mm |
|
Bar diameter (Double) |
12-25mm |
|
Raw material storage method |
Compartmentalized bunker truck |
|
Raw material loading method |
Magnetic type |
|
Cutting method of raw material |
Hydraulic |
|
Hydraulic pressure |
≤16MPa |
|
Gas pressure |
≤0.8MPa |
|
Rated power of equipment |
24KW |
|
Number of operators |
1 person |
|
Production efficiency |
24 tons/10 hours |
|
Occupied area |
24m×6m |
Safe operating procedure
1. After the power is turned on, each single machine is tested separately, and its operation is observed. After ensuring that there is no abnormal condition, it can be started online.
2. After the online startup, it is strictly forbidden to get close to the machine or touch the machine with your hand in the startup state to prevent squeezing or other accidents.
3. The emergency stop switch on the operating platform should always be in a state of easy control, and the surrounding space should be large enough, which is conducive to emergency parking of staff and avoid personal equipment injury.
4. The pressure of compressed air in the gas pipe is adjusted through the pressure regulator filter, and the adjustment pressure should be gradually adjusted from small to large, and the speed cannot be too fast.
