The equipment is an automatic welding and forming equipment for special-shaped stirrup steel cage. It is a perfect alternative to manual binding of stirrup cages. The minimum main bar spacing can be 100mm, and the maximum can be customized according to customers.

Video

Parameters

Cage length	6m,Customizable
Winding bar type	Stirrup
Main bar type	Bar
Main bar number	3-6pc, Customizable
Diameter of main bar	10-20mm, Customizable
Stirrup diameter	6-12mm, Customizable
Stirrup profile	Triangles, rectangles, special shapes
Stirrup spacing	≥30mm
Minimum distance between main bars	100mm

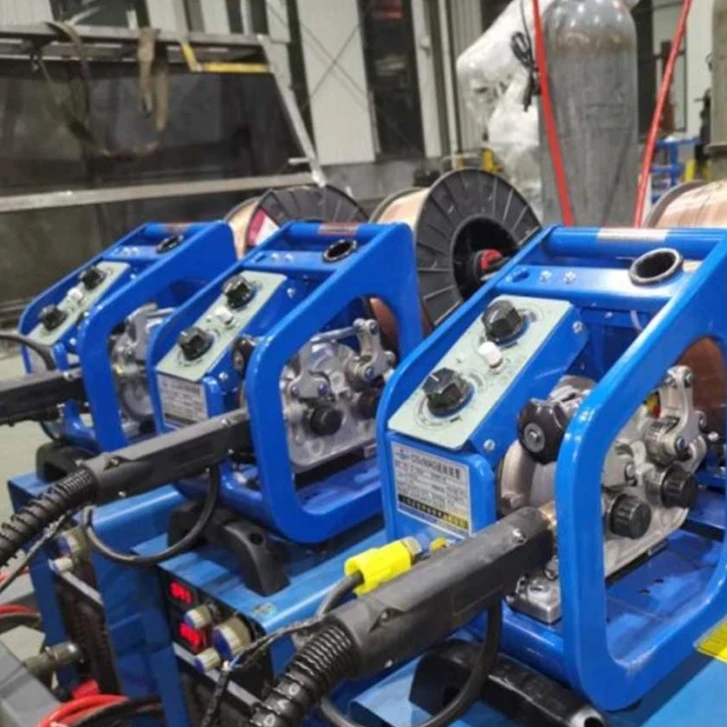

Welding manner	Gas shielded welding
Gas pressure	≤0.8MPa
Power	14.5KW
Welding power	100KW
Number of operators	1 person
Production efficiency	24 sections/10h,6m/section
Occupied area	16m×3m

Prepare For Startup

a. Check whether the power connection of the steel cage forming machine is normal and ensure that the voltage is stable.

b. Check the oil level of the lubricating oil to ensure that the lubrication system works normally.

c Check whether the operating parts of the machine are in good condition, such as belt, chain, transmission device, etc.

Debug Operations

a. Feed the rebar into the feed port of the machine and adjust the position of the feed spoke to ensure that the rebar can pass smoothly.

b. By adjusting the parameters of the machine, such as speed, pressure, etc., so that the steel bar in the molding process to maintain the appropriate tension.

c. Observe the halo of the steel cage in the molding process, adjust the machine parameters in time to ensure that the diameter and length of the steel cage meet the requirements.
