Shandong Zhongji Luyuan is mainly engaged in the research and development, design, production and sales of CNC steel bar processing equipment, and provides the overall solution for CNC steel bar processing.

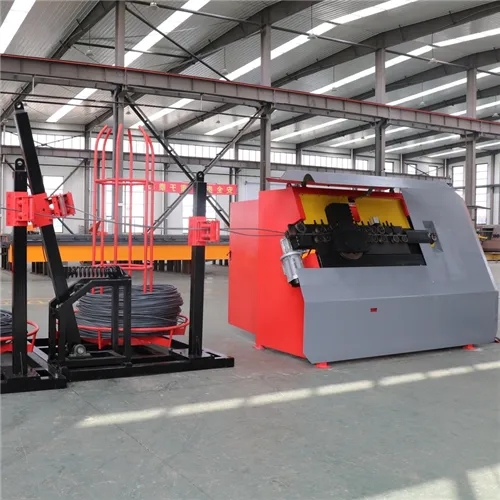

Automatic Rebar Bender
The raw materials are stored in multistage silos. Different specifications of bars automatic switch matching magnetic feeding mechanism to realize multiple steel bars forming at one time, and the efficiency is stable and efficient.

Video

Parameters

Equipment Model	LYZD-WQ32
Bar diameter (Single)	12-32mm
Bar diameter (Double)	12-25mm
Raw material storage method	Compartmentalized bunker truck
Raw material loading method	Magnetic type
Cutting method of raw material	Hydraulic
Hydraulic pressure	≤16MPa
Gas pressure	≤0.8MPa
Rated power of equipment	24KW
Number of operators	1 person
Production efficiency	24 tons/10 hours
Occupied area	24m×6m

CNC steel bar bending machine adopts two groups of servo system, one group is used to control the straightening and feeding of the steel bar, and the other group is used to control the movement of the torsion head. The servo drive in the servo system is controlled by industrial control machine. C language and VISUALBASIC are used for programming, and the programming is carried out according to the digital-to-analog conversion relationship of servo driver. The focus of the control part is how to control the feed displacement and bending Angle of the steel bar. The control system needs to complete two aspects of control. First, the feed length of the steel bar is controlled to meet the machining requirements. This part is completed by a group of closed-loop control through the displacement information fed back by the rotary encoder. Secondly, the processing Angle of the torsion head is controlled. It is difficult to reach the machining design Angle with one twist. Therefore, the Angle information transmitted by the Angle sensor is controlled by another set of closed-loop control systems.
